Applications：

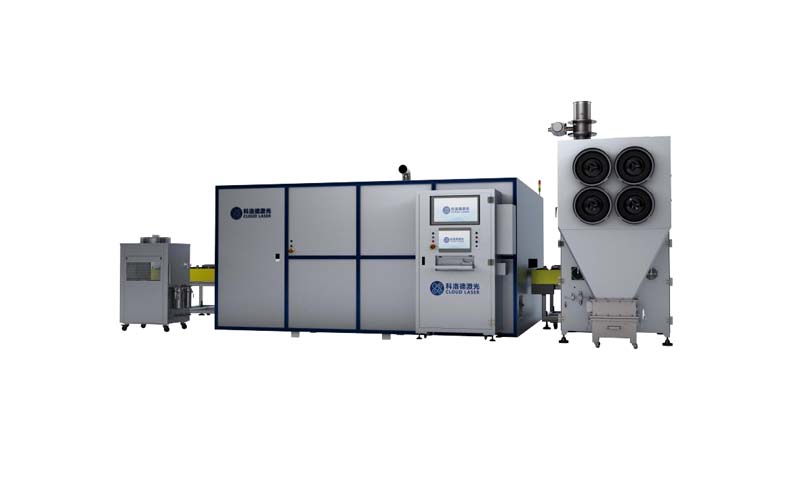

The laser edge cleaning machine is a fully automatic laser edge cleaning machine developed by our company specifically for the edge cleaning needs of solar thin film solar cells. It has the characteristics of high processing quality, no coating residue, high edge resistance, and good consistency.
Features：
The edge cleaning efficiency is greater than 75cm²/s, and the resistance of the edge cleaning area is >1GΩ;
The processing dimensions can be automatically compensated based on product loading errors to ensure processing accuracy;
The control software with independent intellectual property rights is simple to operate and quick to change models.
Main Specifications：
| Laser type | Disc/fiber laser |
| Laser life | >20000 hours |
| Processing spot type | Round/square light spot |
| Clean edge width | 0-30mm adjustable |
| Clean edge length | 0-2000mm adjustable |
| Resistance after edge cleaning | >1GΩ |
| Roughness (clean edge area ) | Ra＜50nm |
| Distance accuracy from edge cleaning area to reference edge | ±0.1mm |
| Efficiency | >75cm ²/s |
| Dust removal level | H14 |
| Dimensions | 4400mm×3700mm×2400mm ( excluding three-color lights) |
| Weight | 4.4 metric tons |
