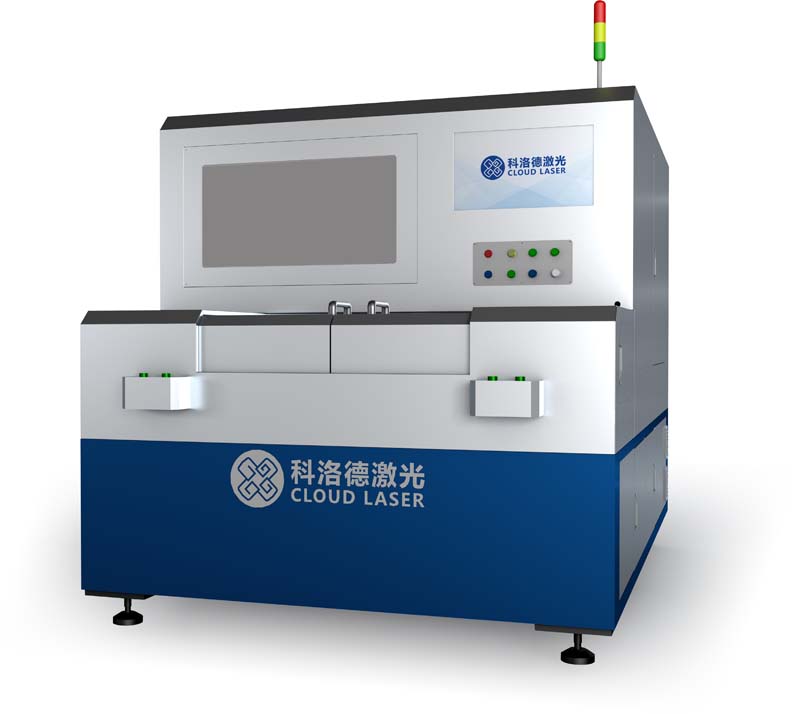

Dual-station laser glass cutting & breaking machine

Application:

Security: camera cover, camera protection lens, display cover, etc.

Smart home: switch panel, display screen cover, etc.;

Automotive glass: window glass, front and rear windshields, rearview mirrors, reflectors, display cover and car dashboard cover, etc.;

Electronic display glass: mobile phone camera cover glass, sapphire, mobile phone cover glass, lens, filter, camera prism, dial cover, etc.

Features:

Dual-station cutting and breaking combo design, loading and unloading are parallel to cutting and breaking, which improves processing efficiency;

Edge chipping quality is less than 10μm;

It can meet special-shaped cutting of different thicknesses and shapes, and the cutting drawing can be edited freely; the software interface is friendly and maintainable.

the software (UI) is friendly and maintainable.

Main Specifications:

Laser wave length 1064nm
Laser power 30-90W (optional)
Laser cooling method water cooling
Beam quality M2<1.3
Maximum glass size range 600mm×700mm (customizable)
Linear cutting speed <500mm/s
Edge chipping quality <10μm
Processing accuracy ± 20μm
Platform repeatability accuracy ± 2μm
Working temperature/humidity 22±2℃/30-60% no condensation
Dimension L*W*H=2400mm*3040mm*1920mm
Weight 5 Metric tons
